9-5/8'' 36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure

Name: 958 36535RBP Packer Bridge Plug Retrievable Packer 10000psi Working Pressure
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

Quality 9-5/8'' 36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure wholesale

Brand Name : ZZ TOP OIL TOOLS

Model Number : 9 5/8" Retrievable Bridge Plug

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : 9 5/8" Retrievable Bridge Plug

Type : Packer type RBP

Size : 9 5/8inch

Working Pressure : 10000psi

Application : Oil Well Downhole Testing Service

Connection : IF, EUE , CAS

Working Condition : Oil & Gas & H2S service

Working Temperature : Up to 425oF

Contact Now

9-5/8"36-53.5#RBP Packer / Bridge Plug Retrievable Packer 10000psi Working Pressure

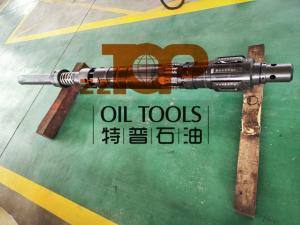

The Retrievable Bridge Plug(RBP) is a high-pressure packer style bridge plug used for multiple selective zone treating and testing operations.

The RBP consists of packer-type sealing elements, mechanical slips, and a large-area bypass. The sealing elements are less susceptible to damage while running in the hole because they are not in contact with the casing. The 3L RBP is designed to set in tension or compression, which makes it ideal for shallow applications to test wellhead for deep, high-pressure applications.

Specifcation of 9 5/8" Retrievable bridge plug with redress kit

No.	Description	Qty	Unit
1	9-5/8" 36-53.5# RBP Packer,working Pressure 70Mpa(10,000psi,Working Temperature 400F,,H2S as perNACEMR 0175,Thread Connection 3-1/2" EUE on the Running Tool Note:9 5/8” 29.3-43.5# Kit assembled with packer,9 5/8”47-53.5# will be delivered as spare	Ea	1
2	Rubber element Kit,for 95/8”29.3-43.5#RBP,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2
3	Rubber element Kit,for 95/8”47-53.5#RBP,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2
4	Seal Ring Redress Kt for RBP 95/8”,1set=1run,Need to bereplaced after each run	Set	2
