7'' 23-29# RTTS Packer & 9-5/8" 36-53.5# RTTS Packer With Redress Kit

Name: 7 2329 RTTS Packer amp 958quot 36535 RTTS Packer With Redress Kit
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

Quality 7'' 23-29# RTTS Packer & 9-5/8" 36-53.5# RTTS Packer With Redress Kit wholesale

Brand Name : ZZ TOP OIL TOOLS

Model Number : RTTS Packer

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : 7" & 9 5/8" RTTS Packer

Material : Alloy Steel / Inconnel

Size : 7" & 9 5/8"

Working Pressure : 10000 psi

Application : Oil & Gas Well Downhole Drill Stem Testing Service

Connection : IF, EUE , CAS

Working Condition : Oil & Gas & H2S service

Working Temperature : Up to 425oF

Contact Now

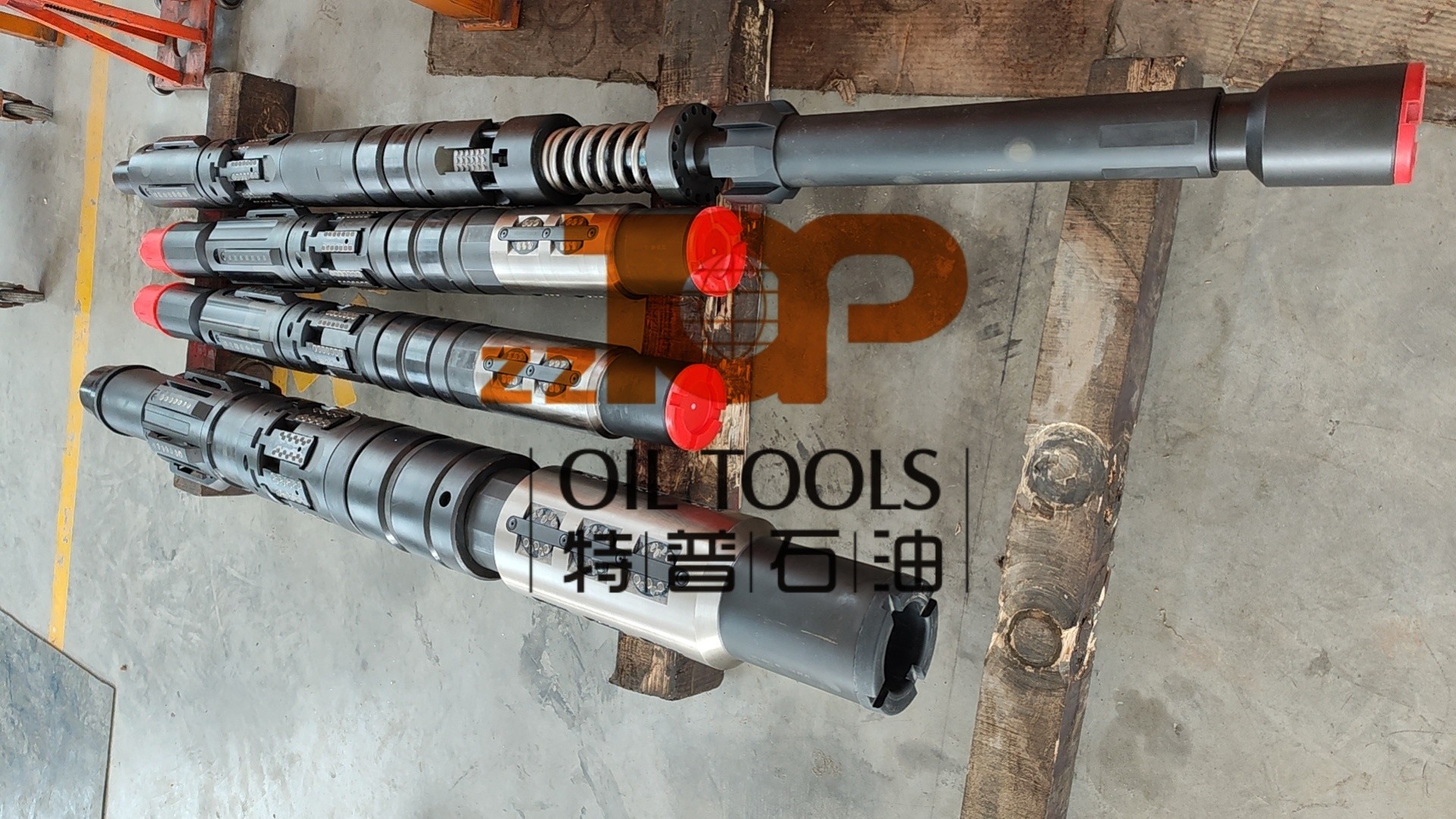

7" 23-29# RTTS Packer & 9-5/8" 36-53.5# RTTS Packer with Redress Kit

A Packer is essential tool to run drill stem testing for cased hole to isolate and seal the downhole formation. It is normally operated by mechanical lifting and rotating to setting and unsetting. The retrievable packer is also called RTTS Packer in Halliburton type.

The retrievable packer is designed with a full opening, which is hookwall type packer for use in testing, treating, and squeeze cementing operations. The full opening permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun. This helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc. This type of packer always need to work with a bypass(circulating valve) i.e RTTS circulating Valve, but in offshore Drill stem testing, left rotation is not permitted then a hydraulic circulating valve is recommended which does not need to rotated for unsetting the packer.

Specifcation of 7" 23-29# RTTS Packer & 9-5/8" 36-53.5# RTTS Packer

No.	Description	Qty	Unit
1	7" 23-29# RTTS Packer,working Pressure 70Mpa(10,000ps) ,Working Temperature 400F,Including Circulating Valve,H2S as per NACE MR 0175, Thread Connection 3-1/2"IF Box xP in	Ea	1
2	7" 23-29# RTTS Packer,working Pressure 70Mpa (10,000psi,Working Tempreture 400F,Including Storm Valve,H2S as perNACE MR 0175,Thread Connection 3-1/2"IF Box xP in	Ea	1
3	J Slot Housing (Lower Housing) for Left Hand Setting Option-For 7” RTTS Packer, Drag block Sleeve	Ea	1
4	Rubber element Kit,for 7"23-29#Packer,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	3
5	Seal Ring Redress Kit for 7”Packer and Circulating Valve,1set=1run,Need to be replaced after each run	Set	2
6	7"23-29#RBP Packer,working Pressure 70Mpa (10,000psi) , Working Temperature 400F,H2S as per NACE MR 0175,Thread Connection 3-1/2"EUE on the Running Tool	Ea	1
7	Rubber element Kit,for 7"23-29# RBP,1set=2pcs, Suggestedto replaced after each run,FKM,400F	Set	2
8	Seal Ring Redress Kit for RBP 7"23-29#,1set=1run,Need to bereplaced after each run	Set	2
9	9-5/8" 36-53.5# RTTS Packer,working Pressure 70Mpa (10,000psi, Working Temperature 400F,Including Circulating Valve,H2S as per NACEMR 0175,Thread Connection 4-1/2"IF BoxxPinNote:9 5/8”29.3-43.5# Kit assembled with packer,95/8”47-53.5# will be delivered as spare	Ea	1
10	Seal Ring Redress Kit for 9 5/8"Packer and Circulating Valve,1set=1run,Need to be replaced after each run	Set	2
11	Rubber element Kit,for 9 5/8” 29.3-43.5# Packer,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2
12	Rubber element Kit,for 9 5/8”47-53.5#Packer,1set=2pcs,Suggested to replaced after each run,FKM,400F	Set	2

7'' 23-29# RTTS Packer & 9-5/8" 36-53.5# RTTS Packer With Redress Kit
