Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations

Name: Hydraulic Open Sleeve For Oil amp Gas Well Fracturing Operations
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

Quality Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations wholesale

Brand Name : ZZ TOP OIL TOOLS

Model Number : Hydraulic Frac Sleeve

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : Hydraulic Open Sleeve

Application : Oil & Gas Well Fracturing Operation

Usage : To provide the initial communication

Tubing Size : 2 7/8" - 5 1/2"

Working Pressure : 15000 psi

Connection : IF, EUE , CAS

Working Condition : Oil & Gas & H2S service

Working Temperature : Up to 400 oF

Contact Now

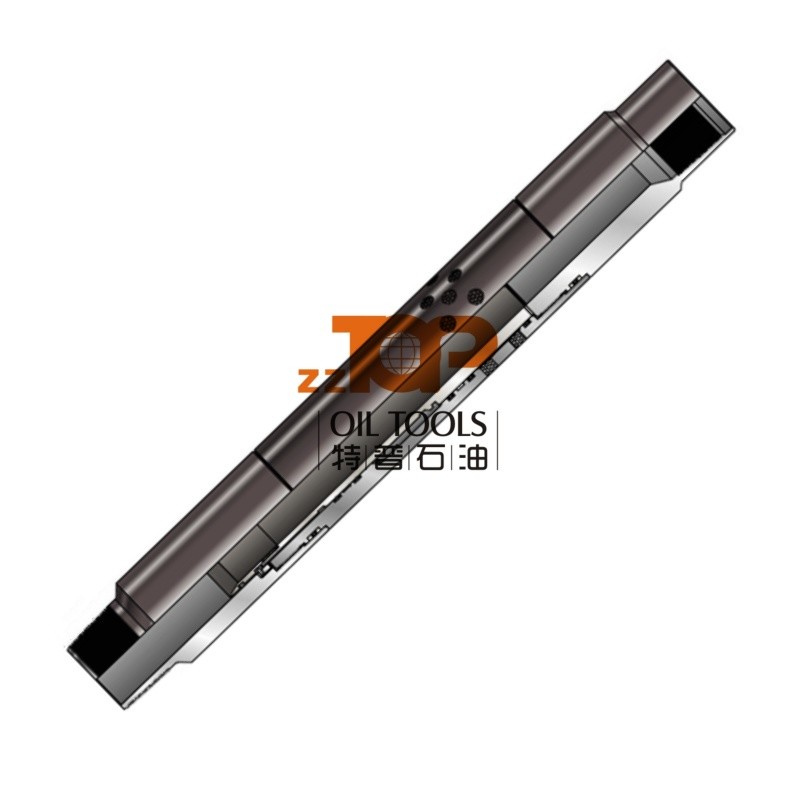

Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations

The Hydraulic Open Sleeve is installed at the bottom of the fracturing system to provide the initial communication between tubing and formation during oil & gas well fracturing operation. The Frac Sleeve is activated by applying pressure to the tubing string that exceeds a predeterminded shear-pinned value, then provide communication between the tubing and annulus for subsequent fracturing operations. The reclosable version can be provided if customer desired

Features and Benefits:

The external material is optional (P110, L80 or higher grade);
Max pressure rating of 15,000PSI[103.4MPa];
Max temperature rating of 400℉;

Technical parameter of Hydraulic Open Sleeve

Specification
Tubing Size		Max.OD		Min.ID
in	mm	in	mm	in	mm
2 7/8	73.03	3.668	93.17	2.441	62.00
2 7/8	73.03	4.000	101.60	2.441	62.00
3 1/2	88.90	4.250	107.95	2.582	65.59
		4.500	114.30	2.559	65.00
		4.750	120.65	3.000	76.20
		5.000	127.00	2.756	70.00
4 1/2	114.30	5.250	133.35	3.250	82.55
4 1/2	114.30	5.500	139.70	4.000	101.60
5 1/2	139.70	6.300	160.00	4.778	121.36
