WSV/WSVB Bridge Plug / Packer For Well Completion Flow Control

Name: WSVWSVB Bridge Plug Packer For Well Completion Flow Control
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

Quality WSV/WSVB Bridge Plug / Packer For Well Completion Flow Control wholesale

Brand Name : ZZ TOP OIL TOOLS

Model Number : Bridge Plug / Squeeze Packer

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : Bridge Plug / Squeeze Packer

Application : Oil & Gas Well Completion Operation

Usage : Flow Control Equipment

Size : 5" - 9 5/8"

Working Pressure : 10000 psi

Connection : IF, EUE , CAS

Working Condition : Oil & Gas & H2S service

Working Temperature : Up to 400 oF

Contact Now

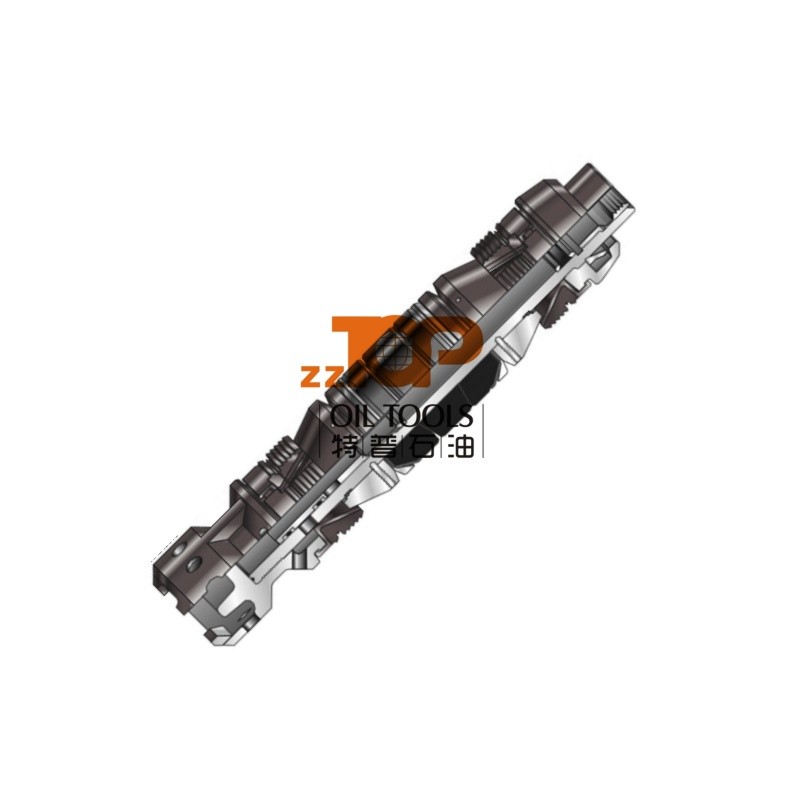

WSV/WSVB Bridge Plug / Packer For Well Completion Flow Control

The WSV / WSVB is the downhole tools consists of packers and bridge plugs that can be used for applications such as wellbore isolation, remedial cementing, and plug and abandonment. The WSV/WSVB packer can control flow and differential pressure in either direction by work string manipulation of the sliding valve inside the tool. Through a conversion kit, the packer can be easily converted to bridge plug by a mandrel plug.

Features and Benefits:

The bridge plug can be set mechanically or hydraulically on tuing, coiled tubing, electric wireline or slickline；
The bridge plug sets in a wide range of casing sizes and grades, special slip can bite into V155 grade casing；
Effective setting and sealing in elevated temperatures and pressures, up to 12K and 400〫F;
The OD of bridge plug held to a minimum, allowing more clearance between the tool and casing for faster run-in.

Technical parameter of WSV/WSVB Bridge Plug / Packer

Casing Size	Casing Weight	OD		Pressure Rating
in	Lbs/ft	in	mm	psi	MPa
5	15-21	3.97	100.8	10,000	70.0
5 1/2	20-23	4.45	113.03	1000	70.0
6 5/8	17-32	5.47	138.89	1000	70.0
7	23-32	5.88	149.23	1000	70.0
7	32-38	5.687	144.45	1000	70.0
7 5/8	24-29.7	6.732	170.99	1000	70.0
9 5/8	36-47	8.438	214.33	1000	70.0
